• Hohe Präzision und hohe Effizienz können eine hochwertige Verarbeitungsoberfläche von Kupferelektroden erzielen.

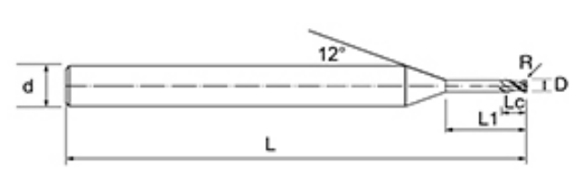

| Nein. | Durchmesser D | R-Winkel R | Flötenlänge Lc | Effektive Länge L1 | Gesamtlänge L | Schaftdurchmesser d | Klingenanzahl F |
| NNX-2RSP-D0.2-L1 | 0.2 | 0.02 | 0.2 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.2 | 0.02 | 0.2 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.2 | 0.02 | 0.2 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.2 | 0.02 | 0.2 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.2 | 0.05 | 0.2 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.2 | 0.05 | 0.2 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.2 | 0.05 | 0.2 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.2 | 0.05 | 0.2 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.3 | 0.02 | 0.3 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.3 | 0.02 | 0.3 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.3 | 0.02 | 0.3 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.3 | 0.02 | 0.3 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.3 | 0.02 | 0.3 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.3 | 0.05 | 0.3 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.3 | 0.05 | 0.3 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.3 | 0.05 | 0.3 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.3 | 0.05 | 0.3 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.3 | 0.05 | 0.3 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.02 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.02 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.02 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.02 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.02 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.02 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.02 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.05 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.05 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.05 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.05 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.05 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.05 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.05 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.1 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.1 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.1 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.1 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.1 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.1 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.1 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L2 | 0.5 | 0.02 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L3 | 0.5 | 0.02 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L4 | 0.5 | 0.02 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L5 | 0.5 | 0.02 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.5 | 0.02 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.5 | 0.02 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.5 | 0.02 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.5 | 0.05 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.5 | 0.05 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.5 | 0.05 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.5 | 0.05 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.5 | 0.05 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.5 | 0.1 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.5 | 0.1 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.5 | 0.1 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.6 | 0.02 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.02 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.02 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.02 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.02 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.02 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.02 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.05 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.05 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.05 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.05 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.05 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.05 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.05 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.1 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.1 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.1 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.1 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.1 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.1 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.1 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.2 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L2 | 0.6 | 0.2 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L3 | 0.6 | 0.2 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L4 | 0.6 | 0.2 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L5 | 0.6 | 0.2 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.6-L8 | 0.6 | 0.2 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.6-L10 | 0.6 | 0.2 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.02 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.02 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.02 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.02 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.02 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.02 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.02 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.05 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.05 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.05 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.05 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.05 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.05 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.05 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.1 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.1 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.1 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.1 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.1 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.1 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.1 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.2 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.2 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.2 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.2 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.2 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.2 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.2 | 0.8 | 10 | 50 | 4 | 2 |
| Werkzeugserie | Durchmesser | Radius | Eckenradius | Flötenlänge | Effektive Länge | Gesamtlänge | Schaftdurchmesser | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNX Hartmetall-Schaftfräser für Kupferelektroden | D0,1 ~ D0,9 | 0 -0,005 | R0,05~R2 | /-0,005 | CR0,05 ~ CR0,5 | /-0,005 | 0 0.3 | 0 0.3 | 0.5 -0,5 | h5 |
| D1~D3.5 | 0 -0,005 | |||||||||
| D4~D10 | -0,003 -0,015 | R3~R5 | /-0,005 | CR1.0 ~ CR3.0 | /-0,008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0,003 -0,018 | R6~R10 | /-0,008 | |||||||
Die Produkte der NNX-2RSP-Serie bieten eine große Auswahl an Größen, die Werkzeugdurchmesser von 0,2 mm bis 0,8 mm abdecken, und ermöglichen eine Vielzahl von Kombinationen bei Klingenlänge, Klingendurchmesser und Kehlradius. Unabhängig davon, ob es sich um hochpräzise Bearbeitungsanforderungen oder spezifische Anforderungen an die Tiefenbearbeitung handelt, bietet diese Serie eine flexible Anpassung, um hochpräzise Optionen in verschiedenen Bearbeitungsszenarien zu erfüllen.
Das einzigartige Tiefrillen-Rundnasendesign wurde speziell für die Feinbearbeitung von Kupferelektroden entwickelt, was die Schnittlastverteilung optimiert und es dem Werkzeug ermöglicht, auf kleinem Raum Stabilität zu bewahren. Der Spiralwinkel von 30° sorgt für eine reibungslose Spanabfuhr und reduziert die Hitze und den Werkzeugverschleiß, die durch die Spanansammlung während der Bearbeitung entstehen. In Kombination mit den Eigenschaften des Mikrodurchmessers kann eine hervorragende Leistung in einer hochpräzisen Bearbeitungsumgebung erzielt werden.
Die gesamte Serie verwendet (0,2 μm) ultrafeine Partikelsubstrate mit der neuesten DLC-Beschichtungstechnologie, was dem Werkzeug einen extrem niedrigen Reibungskoeffizienten und eine ausgezeichnete Verschleißfestigkeit verleiht, was die Bearbeitungslebensdauer erheblich verbessert. Durch den Präzisionsschleifprozess erreicht die Schärfe der Schneide das Äußerste. Das Gesamtdesign konzentriert sich auf die Spiegelbearbeitungsleistung der Kupferelektrode, um eine effizientere und stabilere Mikrobearbeitung zu erreichen.
Unternehmensgründung
Mitarbeiter

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are Schaftfräser für die Bearbeitung von Kupferelektroden mit 2 Nuten, Mlicro-Durchmesser, tiefer Nut und runder Nase Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional Schaftfräser für die Bearbeitung von Kupferelektroden mit 2 Nuten, Mlicro-Durchmesser, tiefer Nut und runder Nase Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
Wir werden Ihnen werktags innerhalb von 12 Stunden nach Eingang der Anfrage antworten.
Wir sind Hersteller, wir produzieren und verkaufen selbst.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional Schaftfräser für die Bearbeitung von Kupferelektroden mit 2 Nuten, Mlicro-Durchmesser, tiefer Nut und runder Nase Suppliers.
Unsere Produkte decken nahezu die gesamte Formenindustrie, Verteidigungsindustrie, Luft- und Raumfahrtindustrie, Automobilindustrie, elektronische Produkte und andere Bereiche ab.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom Schaftfräser für die Bearbeitung von Kupferelektroden mit 2 Nuten, Mlicro-Durchmesser, tiefer Nut und runder Nase.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are Schaftfräser für die Bearbeitung von Kupferelektroden mit 2 Nuten, Mlicro-Durchmesser, tiefer Nut und runder Nase Factory
Zunächst führen wir nach jedem Prozess entsprechende Kontrollen durch. Für das Endprodukt führen wir eine 100 % vollständige Prüfung gemäß den Kundenanforderungen und internationalen Standards durch;
Darüber hinaus verfügen wir über die fortschrittliche und vollständige Prüfausrüstung der Spitzenklasse in der Branche, wie z. B. Spektralanalysatoren, metallografische Mikroskope usw., die die Stabilität und Konsistenz von Schneidwerkzeugen gewährleisten und gleichzeitig die hochpräzisen Prüfanforderungen der Kunden für Schneidwerkzeuge erfüllen können.
