• Hohe Präzision und hohe Effizienz können eine hochwertige Verarbeitungsoberfläche von Kupferelektroden erzielen.

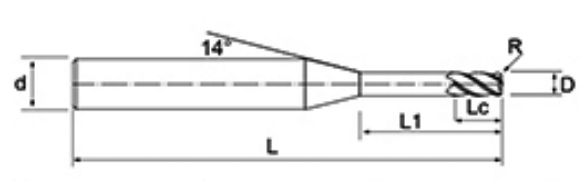

| Nein. | Durchmesser D | R-Winkel R | Flötenlänge Lc | Effektive Länge L1 | Gesamtlänge L | Schaftdurchmesser d | Klingenanzahl F |
| NNX-4RSP-D1-L4 | 1 | 0.1 | 1.5 | 4 | 50 | 4 | 2 |
| NNX-4RSP-D1-L6 | 1 | 0.1 | 1.5 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1-L8 | 1 | 0.1 | 1.5 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1-L10 | 1 | 0.1 | 1.5 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1-L12 | 1 | 0.1 | 1.5 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1-L14 | 1 | 0.1 | 1.5 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1-L16 | 1 | 0.1 | 1.5 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1-L18 | 1 | 0.1 | 1.5 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1-L20 | 1 | 0.1 | 1.5 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D1-L4 | 1 | 0.2 | 1.5 | 4 | 50 | 4 | 2 |
| NNX-4RSP-D1-L6 | 1 | 0.2 | 1.5 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1-L8 | 1 | 0.2 | 1.5 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1-L10 | 1 | 0.2 | 1.5 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1-L12 | 1 | 0.2 | 1.5 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1-L14 | 1 | 0.2 | 1.5 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1-L16 | 1 | 0.2 | 1.5 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1-L18 | 1 | 0.2 | 1.5 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1-L20 | 1 | 0.2 | 1.5 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L6 | 1.5 | 0.1 | 2.3 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L8 | 1.5 | 0.1 | 2.3 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L10 | 1.5 | 0.1 | 2.3 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L12 | 1.5 | 0.1 | 2.3 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L14 | 1.5 | 0.1 | 2.3 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L16 | 1.5 | 0.1 | 2.3 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L18 | 1.5 | 0.1 | 2.3 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L20 | 1.5 | 0.1 | 2.3 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L6 | 1.5 | 0.2 | 2.3 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L8 | 1.5 | 0.2 | 2.3 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L10 | 1.5 | 0.2 | 2.3 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L12 | 1.5 | 0.2 | 2.3 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L14 | 1.5 | 0.2 | 2.3 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L16 | 1.5 | 0.2 | 2.3 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L18 | 1.5 | 0.2 | 2.3 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L20 | 1.5 | 0.2 | 2.3 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D2-L6 | 2 | 0.1 | 3 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D2-L8 | 2 | 0.1 | 3 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D2-L10 | 2 | 0.1 | 3 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D2-L12 | 2 | 0.1 | 3 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D2-L14 | 2 | 0.1 | 3 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D2-L16 | 2 | 0.1 | 3 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D2-L18 | 2 | 0.1 | 3 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D2-L20 | 2 | 0.1 | 3 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D2-L6 | 2 | 0.2 | 3 | 6 | 50 | 4 | 4 |
| NNX-4RSP-D2-L8 | 2 | 0.2 | 3 | 8 | 50 | 4 | 4 |
| NNX-4RSP-D2-L10 | 2 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D2-L12 | 2 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D2-L14 | 2 | 0.2 | 3 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D2-L16 | 2 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D2-L18 | 2 | 0.2 | 3 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D2-L20 | 2 | 0.2 | 3 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D2-L6 | 2 | 0.5 | 3 | 6 | 50 | 4 | 4 |
| NNX-4RSP-D2-L8 | 2 | 0.5 | 3 | 8 | 50 | 4 | 4 |
| NNX-4RSP-D2-L10 | 2 | 0.5 | 3 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D2-L12 | 2 | 0.5 | 3 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D2-L14 | 2 | 0.5 | 3 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D2-L16 | 2 | 0.5 | 3 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D2-L18 | 2 | 0.5 | 3 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D2-L20 | 2 | 0.5 | 3 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L10 | 3 | 0.1 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.1 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.1 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.1 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.1 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.1 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L10 | 3 | 0.2 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.2 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.2 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.2 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.2 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.2 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L10 | 3 | 0.5 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.5 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.5 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.5 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.5 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.5 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.2 | 4.5 | 12 | 60 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.2 | 4.5 | 14 | 60 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.2 | 4.5 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.2 | 4.5 | 18 | 60 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.2 | 4.5 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.2 | 4.5 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.5 | 4.5 | 12 | 60 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.5 | 4.5 | 14 | 60 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.5 | 4.5 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.5 | 4.5 | 18 | 60 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.5 | 4.5 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.5 | 4.5 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.2 | 4.5 | 12 | 75 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.2 | 4.5 | 14 | 75 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.2 | 4.5 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.2 | 4.5 | 18 | 75 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.2 | 4.5 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.2 | 4.5 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D3-L30 | 3 | 0.2 | 4.5 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.5 | 4.5 | 12 | 75 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.5 | 4.5 | 14 | 75 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.5 | 4.5 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.5 | 4.5 | 18 | 75 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.5 | 4.5 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.5 | 4.5 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D3-L30 | 3 | 0.5 | 4.5 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 0.2 | 6 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.2 | 6 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.2 | 6 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 05 | 6 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.5 | 6 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.5 | 6 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 0.2 | 6 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.2 | 6 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.2 | 6 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D4-L30 | 4 | 0.2 | 6 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D4-L35 | 4 | 0.2 | 6 | 35 | 75 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 0.5 | 6 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.5 | 6 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.5 | 6 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D4-L30 | 4 | 0.5 | 6 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D4-L35 | 4 | 0.5 | 6 | 35 | 75 | 6 | 4 |
| Werkzeugserie | Durchmesser | Radius | Eckenradius | Flötenlänge | Effektive Länge | Gesamtlänge | Schaftdurchmesser | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNX Hartmetall-Schaftfräser für Kupferelektroden | D0,1 ~ D0,9 | 0 -0,005 | R0,05~R2 | /-0,005 | CR0,05 ~ CR0,5 | /-0,005 | 0 0.3 | 0 0.3 | 0.5 -0,5 | h5 |
| D1~D3.5 | 0 -0,005 | |||||||||
| D4~D10 | -0,003 -0,015 | R3~R5 | /-0,005 | CR1.0 ~ CR3.0 | /-0,008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0,003 -0,018 | R6~R10 | /-0,008 | |||||||

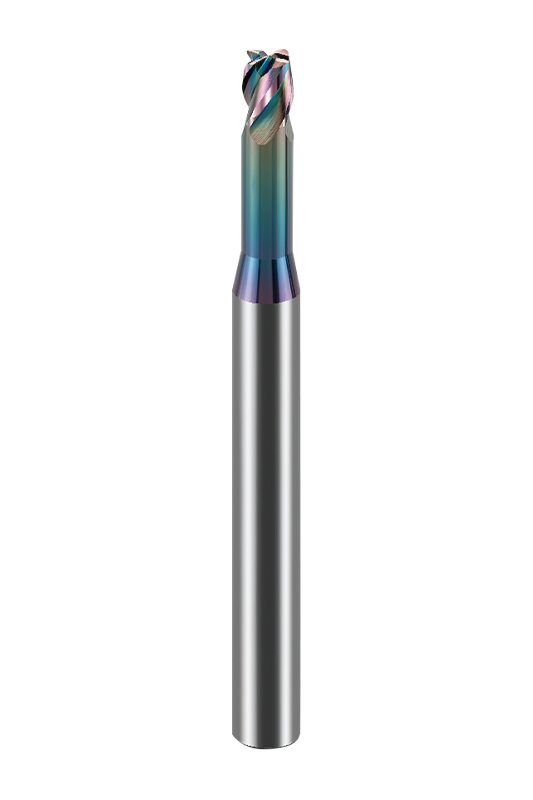

Der 4-schneidige NNX-4RSP-Rundschaftfräser mit tiefen Nuten für die Kupferelektrodenbearbeitung bietet eine große Auswahl an Größenoptionen, von kleinem Durchmesser bis großem Durchmesser, von kurzer Kantenlänge bis langer Kantenlänge. Jede Spezifikation wurde sorgfältig entwickelt, um den Anforderungen unterschiedlicher Arbeitsbedingungen gerecht zu werden. Ob Feinbearbeitung oder großflächiges Schneiden, die flexible Kombination verschiedener Teilmodelle ermöglicht dem Anwender die freie Wahl des am besten geeigneten Werkzeugs für eine effiziente und präzise Kupferelektrodenbearbeitung.
Das spezielle Tiefrillen-Rundnasendesign erhöht nicht nur die Steifigkeit des Werkzeugs, sondern optimiert auch die Kraftverteilung der Schneidkante und reduziert so effektiv Vibrationen und Grate während der Bearbeitung. Das einzigartige Rillendesign reduziert den Schnittwiderstand, gewährleistet ein stabiles Schneiden von Kupferelektrodenmaterialien bei hohen Geschwindigkeiten und verbessert die Oberflächengüte.
Das Werkzeug verwendet ein (0,2 μm) ultrafeines Partikelsubstrat mit der neuesten DLC-Beschichtungstechnologie, das eine hervorragende Verschleißfestigkeit und einen extrem niedrigen Reibungskoeffizienten aufweist, was es besonders bei der Verarbeitung von Kupferelektroden überlegen macht. In Kombination mit der ultrafeinen Schleiftechnologie und der Klinge mit extrem geringer Rauheit wird das Adhäsionsproblem des Werkzeugs erheblich reduziert und die Lebensdauer und Verarbeitungskonsistenz verbessert.
